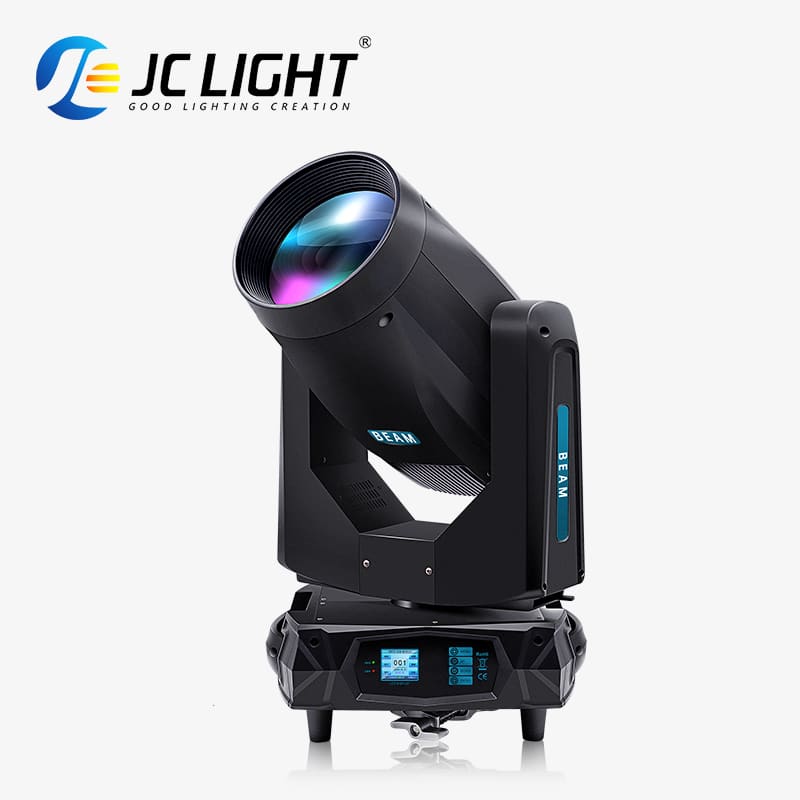

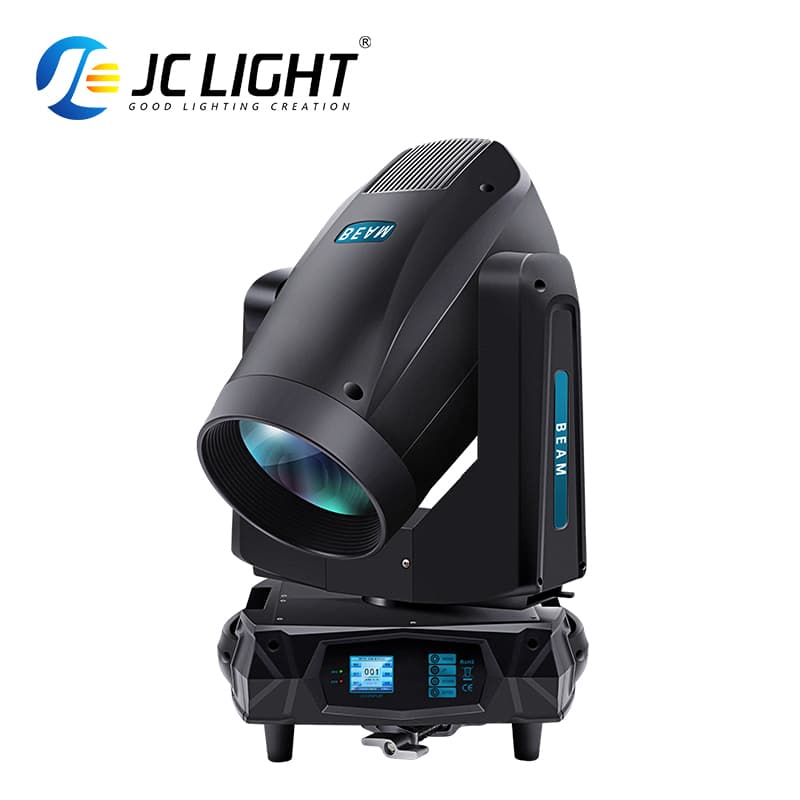

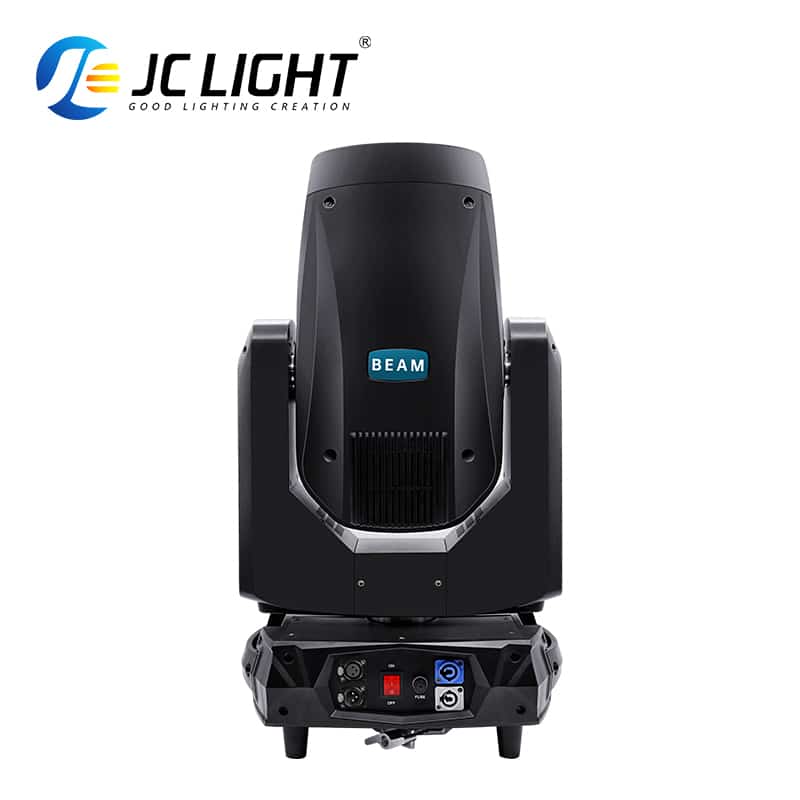

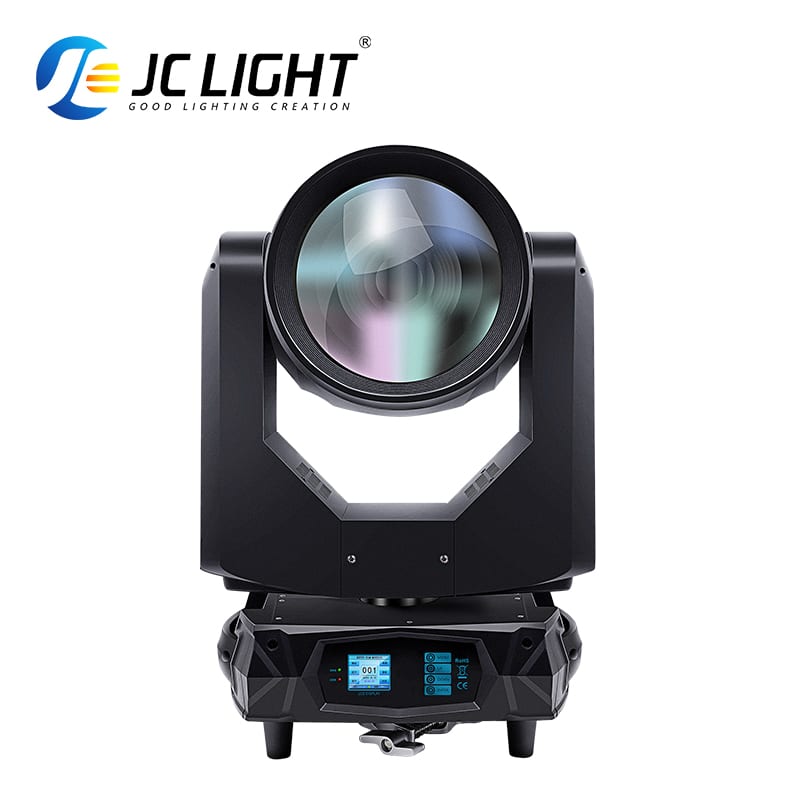

440W/460W BEAM LIGHT

Description

Parameters

OPTICAL SYSTEM
Light source: 19R/20R Osram 400w/440w/460w/480w

COLOR SYSTEM
Color wheel:14 color+white, rainbow effect with bidirectional rotation, full color effect and half color effect modes switch

GOBO SYSTEM
Gobo wheel:17 gobo+ white, jitter effect

EFFECTS
Focus: electronic focus
Prism: 8 prism, 48 prism, which can be overlay zoom in, independent rotating prism can be positioned.
Atomization: 0-99% atomization soft light effect
Dimmer:0-100% linear dimming
Strobe: 1-13t/s

MOVEMENT PARAMETER
Pan& tilt: 540°Pan scaning,270°Tilt scanning(16bit accurate scanning)

CONTROL AND PROGRAMMING
Control: DMX512/master-slave/Auto-run/sound
Channel: 16/20CH

POWER SUPPLY
VOLTAGE：AC110-240V/50-60Hz
POWER CONSUMPTION：600W
Motor: three-phase motor (fast running speed, accurate positioning)

DIMENSION AND WEIGHT
Product Size: 340X240X600mm
Package Size: 42X48X59cm
N.W: 20.00KGS
G.W：21.20KGS

IP RATE
IP Rating: IP20

Feature:
◎automatic error correction reset function
◎Input signal isolation protection function, to ensure stable signal transmission, free from interference;
◎Intelligent fan noise control;
◎Remote DMX control system with long lifespan;
◎Intelligent microcomputer self-check function.

SHORT MODEL NUMBER: A20

Excellent color mixing effect
