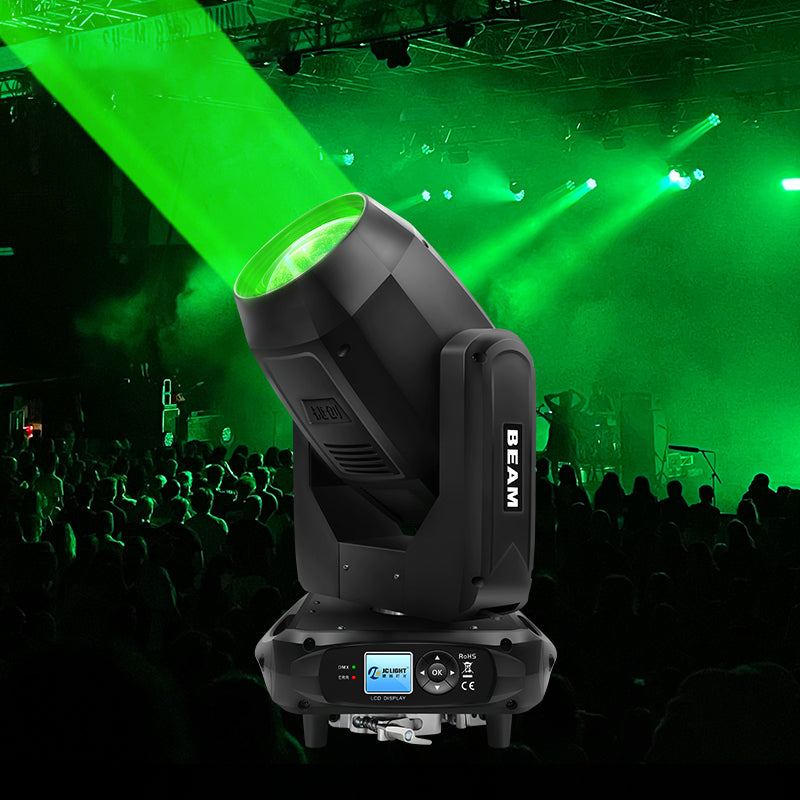

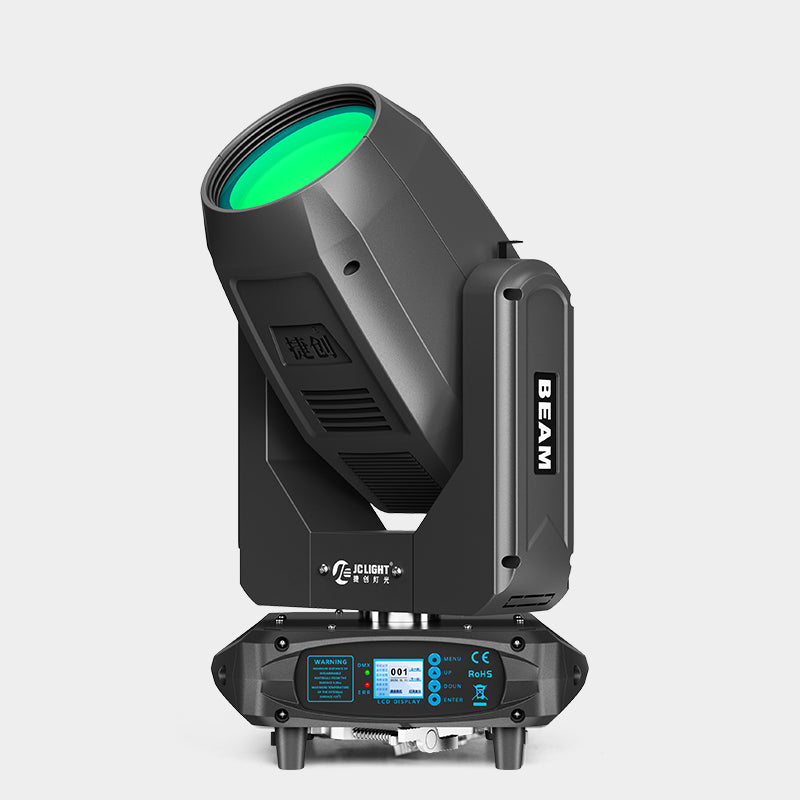

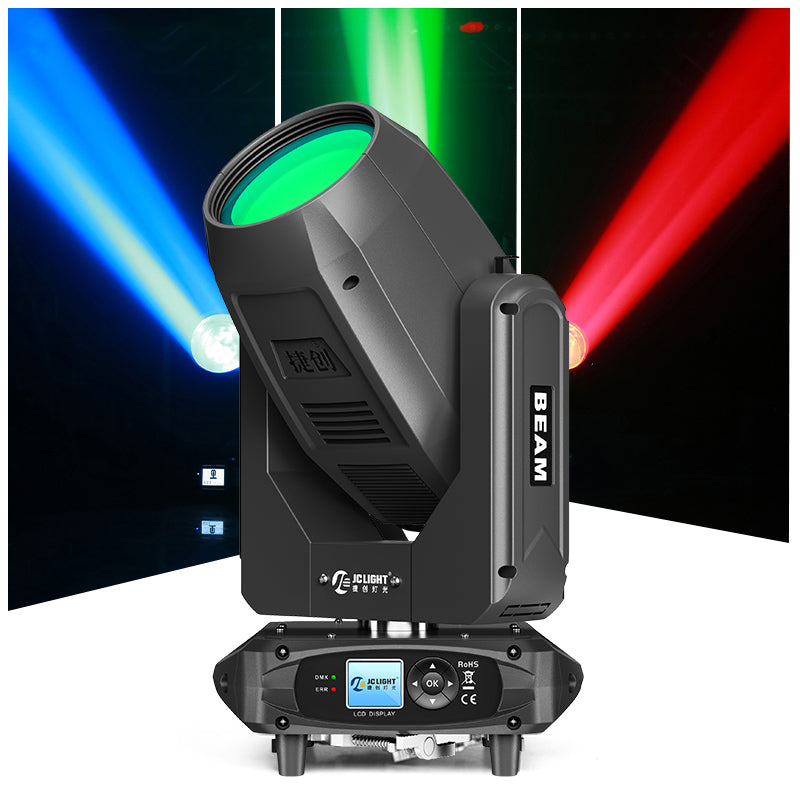

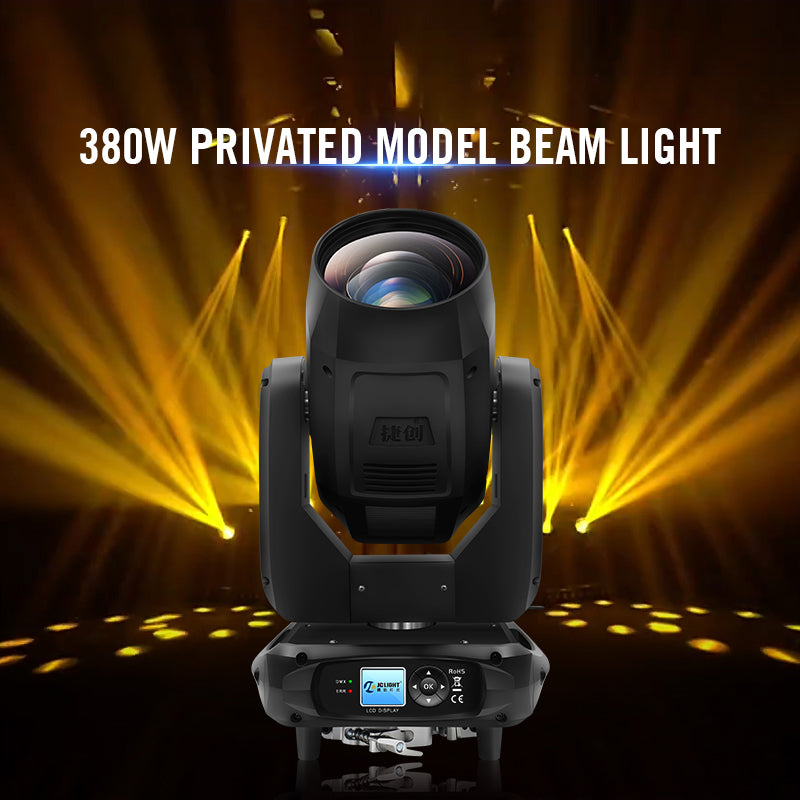

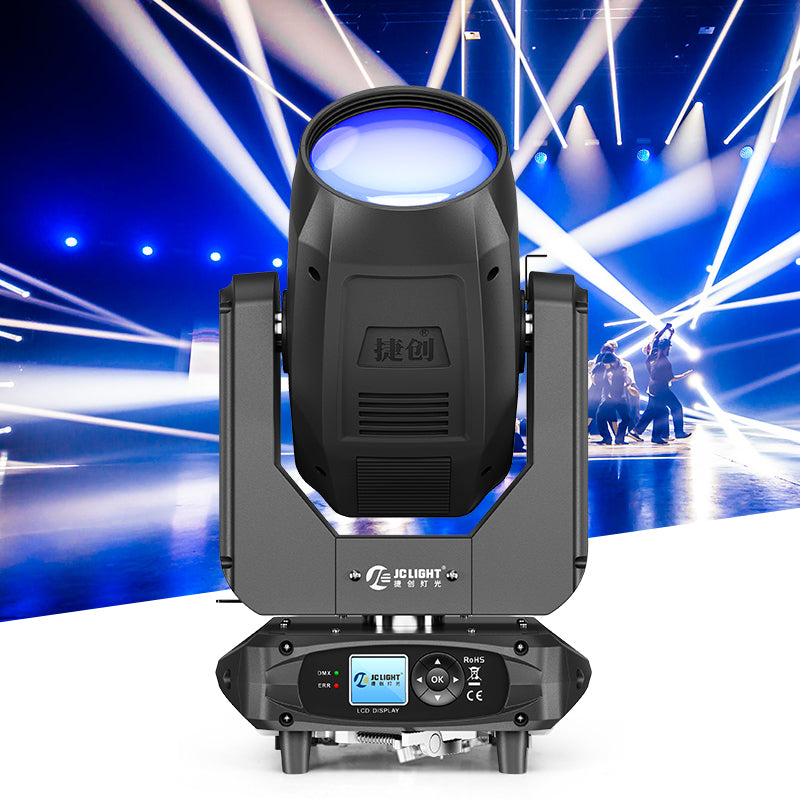

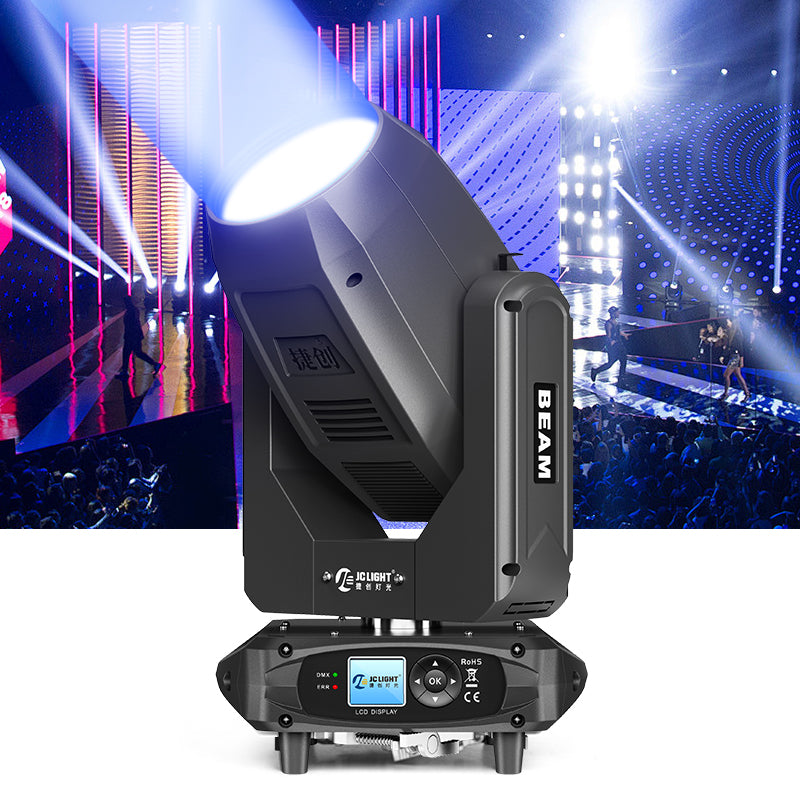

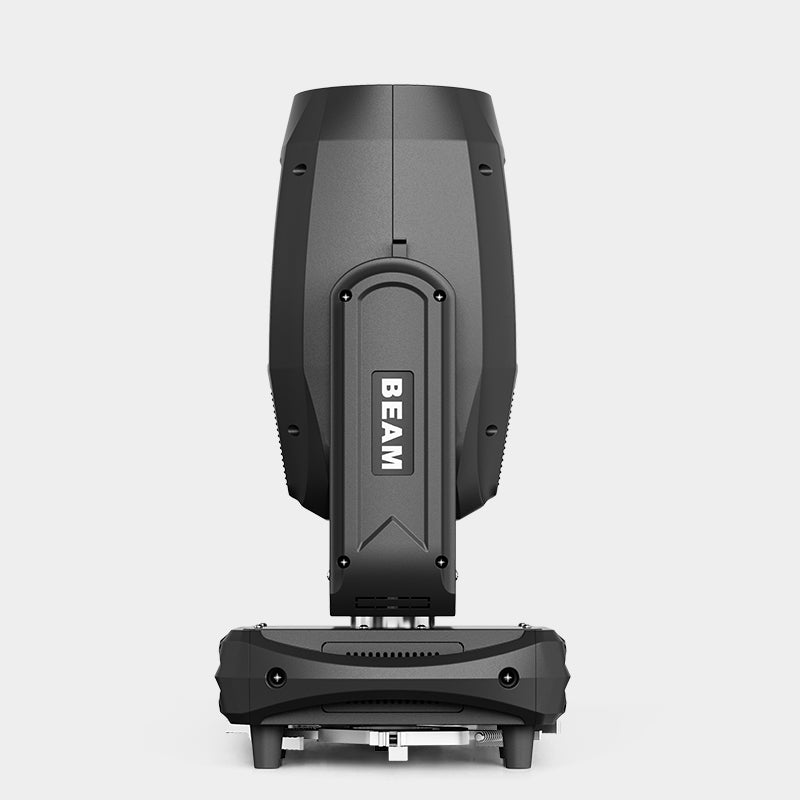

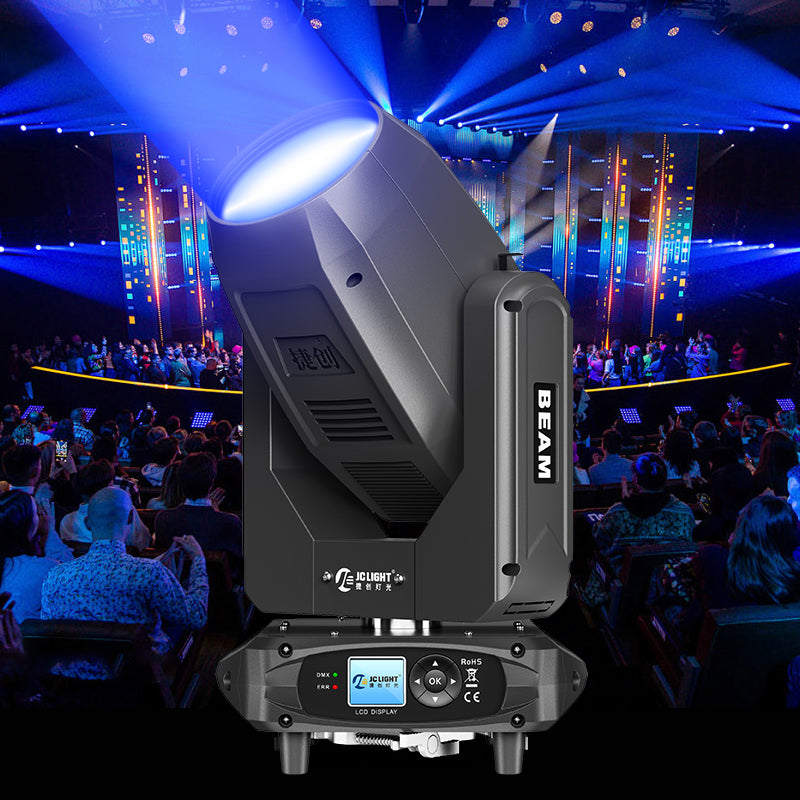

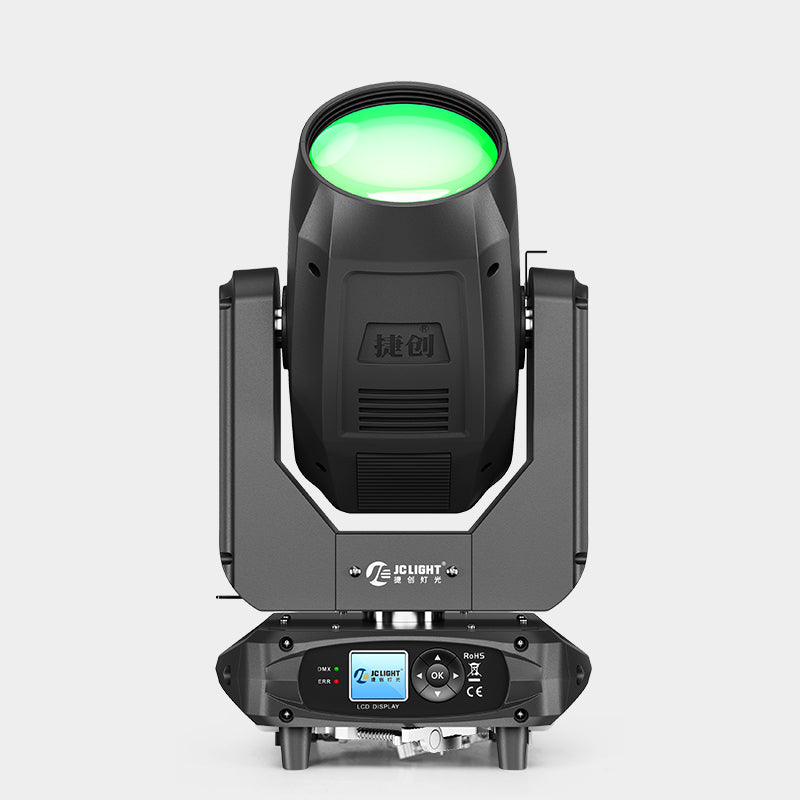

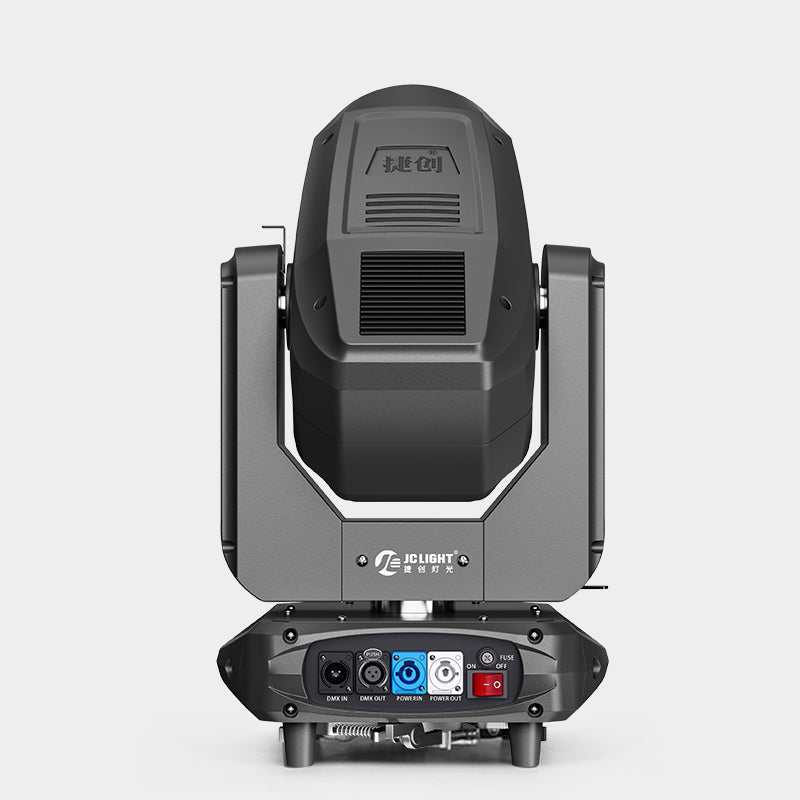

18R 380W BEAM LIGHT(THE KYLIN)

Description

Parameters

OPTICAL SYSTEM
Light source: 18R 380w JCLIGHT special bulb
Beam Angle: 0-2°

COLOR SYSTEM
Multicolor: 6 multicolor
CCT: 8400K
Color wheel: 1 color wheel, 14 colors + white,rainbow effect with bidirectional rotation, full color effect and half color effect modes switch

GOBO SYSTEM
Gobos: 13 fixed gobo, 6 effect gobo

EFFECTS
Focus: focus and zoom in function
Prism: 8+16+24 double prism, rotation effect
Atomization: 15%-60%, independent atomization soft light effect
Dimmer: 0-100% electronic dimming
Strobe: 0-30 t/s
Lifespan:20000H

MOVEMENT PARAMETER
Rotation Angle: 0-3.8°
Pan& tilt: 540°Pan scaning,270°Tilt scanning;8/16-bit smooth and accurate Pan/Tilt rotation
Motor: three-phase motor (fast running speed, accurate positioning)

CONTROL AND PROGRAMMING
Control: DMX512/master-slave/Auto-run/sound/Built-in RDM program
Channel: 16/20CH

POWER SUPPLY
Voltage: AC110-220V/50-60Hz
Power consumption: 500W
Lamp: 380W

DIMENSION AND WEIGHT
Product Size:360X350X510mm
Package Size:580X480X420mm
N.W: 18KGS
G.W: 22KGS

IP RATE
IP Rating: IP20

SHORT MODEL NUMBER: A13

Excellent color mixing effect

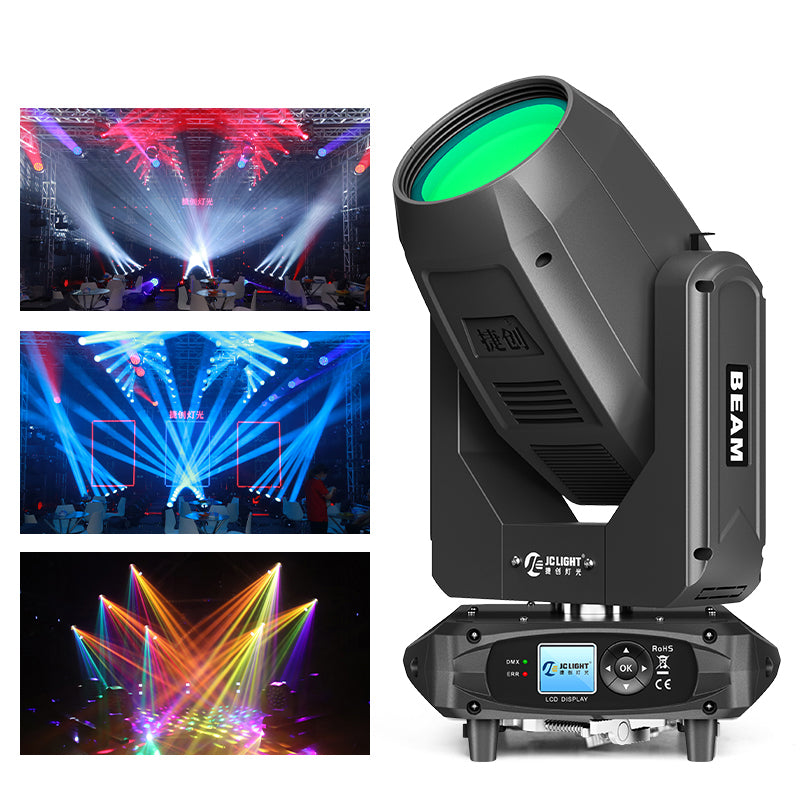

Effect:
